VIC 20 Manuals

The files below require Acrobat Reader to view
download the free viewer here

C2N Cassette Unit Manual

1600 Vicmodem Manual

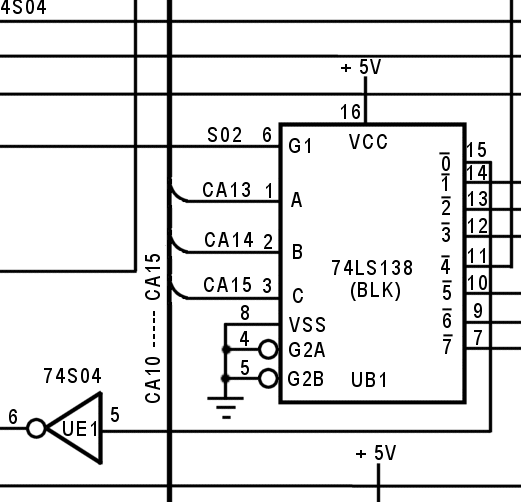

Below are two sets of schematics for the VIC 20 that I have re-drawn. One set is for the E Version (early vic 20) and the other is for the N Version (later model). The easiest way to tell them apart is the label on the VIC 20 itself. These are very Hi-Res drawings, see sample below.

E Schematic
Older Version

N Schematic
Newer Version
